Seal Ring 7513-3104430 for Belaz Dump Truck Spare Parts

AL115625 AL177185 Air Filter Kit for John Deere 6105M-6140M

Premium OEM Cab Glass for John Deere, Shacman & Howo Tractors

Original YTO Tractor Parts for Dongfanghong LX904 LX1304 LY1104 Series

OEM John Deere Tractor Parts for 5E 6B 6M 6R 1204 1404 Series

Premium LOVOL Tractor Parts for 504 904 1204 1804 Models

Luxury Bus Seats for Zhongtong Higer King Long Coaches

High Quality Door Engine Fan X3000 HOWO Air Conditioner for Shacman Truck Parts Shacman F3000 Spare Parts Shacman Spare Parts

Hot Selling Truck Parts Shacman Delong X3000 H3000 F3000 Combined Instrument Dz97189584116 for Shacman Delong

Shacman X3000 M3000 Original Shaanxi Automobile Heavy Truck Engine Parts New Right Front Damping Pad Iron & Rubber Dz95259590116

Belaz 75603 Belaz 757 Belaz 7571 For sale: Control Panel SETsI.453895.032

Original BelAZ control panel SETsI.453895.032, special electronic control unit for mining dump truck electrical system, stable signal output and reliable operation.

Surface treatment Customer's Request
Process Surface Treatment

Product Details

belaz模版

Related products

Oil pump Belaz Price Belaz Truck Belaz Truck Price Dump Truck Belaz

2018-07-16

Suitable for full series of BELAZ mining dump trucks. Oil pump Belaz Price Belaz Truck Belaz Truck Price Dump Truck Belaz
High-strength wear-resistant material for harsh mining conditions.
Precision manufacturing, accurate size, perfect installation.
Stable performance, long service life, reduce equipment downtime.
OEM quality, reliable for long-term mining operation.

view detail

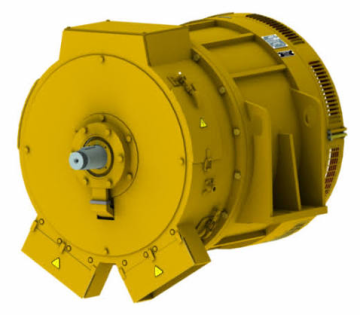

SYNCHRONOUS-GENERATOR-GSN-500-8

2018-07-16

The alternator is intended to be used for feeding electric motors of BelAZ dump trucks with a weight capacity up to 180 t.
Types of climatic version – NF2, T2 acc. to GOST 15150-69
Operation category according to the affection by the mechanical factors of the outdoor environment acc. to M28 GOST 30631-99.
Heat resistance of the insulating materials as for the alternator stator windings corresponds to "H" class, for rotor winding – "F" class, for contact rings – "B" class acc. to GOST 8865-93.
The direction of rotation of the alternator – left (from contact rings).
The direction of rotation of the alternator – left (from contact rings).
Excitement of the alternator – from an auxiliary winding (excitement from the third harmonics of the field in an air gap).
Category of the alternator relating to assembly type – M9809 acc. to GOST 2479-79, with the flange end of a shaft on D-end and taper lock end of a shaft on N-end.
Alternator IP category – IPW 21 acc. to GOST IEC 60034-5-2011 in case of joint operation with diesel plant.
Alternator cooling system – IC11 acc. to GOST R MEK 60034-6-2012.
The alternator can be operated at the heights up to 3200 m above sea level.

Basic technical specifications

Parameter	Value (NF2)	Value (T2)
Rated capacity, kW	800	720
Nominal voltage (line voltage), V
– min	490*	490*
– max	700*	700*
Current, A
– min	2x350	2x315
– max	2x510	4x459
Rotating speed, sec⁻¹ (rpm)	25 (1500) / 31.67 (1900)**
Current frequency, Hz	100 / 126.67
Excitation current, A	210***
Efficiency, %, above	95
Duty type acc. to GOST IEC 60034-1-2014	S1 (continuous)
Weight, kg, max	2900

Remarks:
*Voltage on rectifier conclusions on a direct current: min – 2x610 V, max – 2x900 V.
**Depending on the rotating speed of the diesel engine.
***The excitement current corresponding to a point of the duty type S1 – max.

The generator shall be admitted for operation with voltage increase up to 1000 (NF2) / 900 (T2) kW.

In duty type S6 60% at rectifier leads for direct current equal to 2 x 1000V and rotation frequency of 25 sec.-1 (1500 rpm). Duration of operation – 40 minutes.
In a continuous running mode with the parameters as follows:
– rotation frequency, sec⁻¹ (rpm) 31.67 (1900).
– voltage (line voltage), V 600 / 780;
– current, A 2x565 / 2x390 (NF2); 2x509 / 2x351 (T2).

view detail

Lock drive 03.93.00.00.00 wholesale BelAZ parts genuine BelAZ parts BelAZ spare parts online

2018-07-16

Suitable for full series of BELAZ mining dump trucks.
Flexible coupling 7555E-2208013 Belaz 7547 Belaz 75473 Belaz 7555
High-strength wear-resistant material for harsh mining conditions.
Precision manufacturing, accurate size, perfect installation.
Stable performance, long service life, reduce equipment downtime.
OEM quality, reliable for long-term mining operation.

view detail

Motor-wheel hub part number 75132-3104015-10

2018-07-16

Motor-wheel hub part number 75132-3104015-10
Suitable for full series of BELAZ mining dump trucks.
High-strength wear-resistant material for harsh mining conditions.
Precision manufacturing, accurate size, perfect installation.
Stable performance, long service life, reduce equipment downtime.
OEM quality, reliable for long-term mining operation.

view detail

Intermediate propeller shaft 7555E-2202010 7555E-2202010-10 BelAZ drive shaft

2018-07-16

Suitable for full series of BELAZ mining dump trucks.
Intermediate propeller shaft 7555E-2202010 7555E-2202010-10 BelAZ drive shaft
High-strength wear-resistant material for harsh mining conditions.
Precision manufacturing, accurate size, perfect installation.
Stable performance, long service life, reduce equipment downtime.
OEM quality, reliable for long-term mining operation.

view detail

Flexible coupling 7555E-2208013 Belaz 7547 Belaz 75473 Belaz 7555

2018-07-16

Suitable for full series of BELAZ mining dump trucks.
Flexible coupling 7555E-2208013 Belaz 7547 Belaz 75473 Belaz 7555
High-strength wear-resistant material for harsh mining conditions.
Precision manufacturing, accurate size, perfect installation.
Stable performance, long service life, reduce equipment downtime.
OEM quality, reliable for long-term mining operation.

view detail
