Description of the Technical Status of the Power Suspension Structure

2026-07-06

Explanation of the Technical Status of Powertrain Mounting Structures

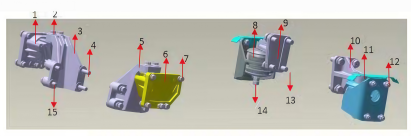

The powertrain mounting includes engine and transmission mounts, installed between the powertrain system and the frame. It serves connecting and cushioning functions, with subgroup number "959". The specific structure is influenced by engine type, frame type, and vehicle model.

X3000/F3000 models, double-layer frame, equipped with Weichai WP12/13 series engines – corresponding engine mounts mainly include:

DZ95259590168 Engine right front vibration damper
Q1811655TF3 Bolt, 4 pieces
DZ95259590198 Engine right front bracket
Q18416100TF3 Bolt, 4 pieces
DZ95259590197 Engine left front bracket
DZ95259590167 Engine left front vibration damper
Q1811445TF3 Bolt, 10 pieces
DZ95259590068 Engine right rear mounting vibration damper
DZ97259590116 Engine right rear support bracket
DZ97259590115 Engine left rear support bracket
DZ95259590067 Engine left rear mounting vibration damper
Q1811440TF3 Bolt, 8 pieces
SXQ1842050TF3 Bolt, 8 pieces
DZ93259590007 Anti-loosening bolt, 2 pieces
Q1841675TF3 Bolt, 4 pieces

X3000/F3000 models, variable-section (940-850) double-layer frame, equipped with Weichai WP12/13 series engines – corresponding engine mounts mainly include:

DZ95259590168 Engine right front vibration damper
Q1811655TF3 Bolt, 4 pieces
DZ95259590196 Engine right front bracket
Q18416100TF3 Bolt, 4 pieces
DZ95259590195 Engine left front bracket
DZ95259590167 Engine left front vibration damper
Q1811445TF3 Bolt, 10 pieces
DZ95259590068 Engine right rear mounting vibration damper
DZ97259590116 Engine right rear support bracket
DZ97259590115 Engine left rear support bracket
DZ95259590067 Engine left rear mounting vibration damper
Q1811440TF3 Bolt, 8 pieces
SXQ1842050TF3 Bolt, 8 pieces
DZ93259590007 Anti-loosening bolt, 2 pieces
Q1841675TF3 Bolt, 4 pieces

X3000/F3000 models, reinforced (8+7+8) three-layer frame, equipped with Weichai WP12/13 series engines – corresponding engine mounts mainly include:

DZ95259590168 Engine right front vibration damper
Q1811655TF3 Bolt, 4 pieces
DZ95259590198 Engine right front bracket
Q18416100TF3 Bolt, 4 pieces
DZ95259590197 Engine left front bracket
DZ95259590167 Engine left front vibration damper
Q1811450TF3 Bolt, 10 pieces
DZ95259590068 Engine right rear mounting vibration damper
DZ97259590134 Engine right rear support bracket
DZ97259590133 Engine left rear support bracket
DZ95259590067 Engine left rear mounting vibration damper
Q1811450TF3 Bolt, 8 pieces
SXQ1842050TF3 Bolt, 8 pieces
DZ93259590007 Anti-loosening bolt, 2 pieces
Q1841675TF3 Bolt, 4 pieces

X3000/F3000 models, lightweight (8+4) double-layer frame, equipped with Weichai WP12/13 series engines – corresponding engine mounts mainly include:

  1. DZ95259590096 Engine right front vibration damper

  2. Q1811655TF3 Bolt, 4 pieces

  3. DZ95259590095 Engine right front bracket

  4. Q18416100TF3 Bolt, 4 pieces

  5. DZ95259590197 Engine left front bracket

  6. DZ95259590167 Engine left front vibration damper

  7. Q1811445TF3 Bolt, 10 pieces

  8. DZ95259590068 Engine right rear mounting vibration damper

  9. DZ97259590116 Engine right rear support bracket

  10. DZ97259590115 Engine left rear support bracket

  11. DZ95259590067 Engine left rear mounting vibration damper

  12. Q1811450TF3 Bolt, 8 pieces

  13. SXQ1842050TF3 Bolt, 8 pieces

  14. DZ93259590007 Anti-loosening bolt, 2 pieces

  15. Q1841675TF3 Bolt, 4 pieces

New M3000 models, double-layer (8+7) 850 frame, equipped with Weichai WP12/13 series engines – corresponding engine mounts mainly include:

  1. DZ96259590114 Engine right front vibration damper

  2. Q1811655TF3 Bolt, 4 pieces

  3. DZ95259590198 Engine right front bracket

  4. Q18416100TF3 Bolt, 4 pieces

  5. DZ95259590197 Engine left front bracket

  6. DZ96259590113 Engine left front vibration damper

  7. Q1811445TF3 Bolt, 10 pieces

  8. DZ95259590068 Engine right rear mounting vibration damper

  9. DZ96259590112 Engine right rear support bracket

  10. DZ96259590111 Engine left rear support bracket

  11. DZ95259590067 Engine left rear mounting vibration damper

  12. Q1811450TF3 Bolt, 8 pieces

  13. SXQ1842050TF3 Bolt, 8 pieces

  14. DZ93259590007 Anti-loosening bolt, 2 pieces

  15. Q1841675TF3 Bolt, 4 pieces

New M3000 models, lightweight single-layer (8) frame, equipped with Weichai WP12/13 series engines – corresponding engine mounts mainly include:

  1. DZ96259590114 Engine right front vibration damper

  2. Q1811655TF3 Bolt, 4 pieces

  3. DZ95259590198 Engine right front bracket

  4. Q18416100TF3 Bolt, 4 pieces

  5. DZ95259590197 Engine left front bracket

  6. DZ96259590113 Engine left front vibration damper

  7. Q1811450TF3 Bolt, 10 pieces

  8. DZ95259590068 Engine right rear mounting vibration damper

  9. DZ96259590112 Engine right rear support bracket

  10. DZ96259590111 Engine left rear support bracket

  11. DZ95259590067 Engine left rear mounting vibration damper

  12. Q1811445TF3 Bolt, 8 pieces

  13. SXQ1842050TF3 Bolt, 8 pieces

  14. DZ93259590007 Anti-loosening bolt, 2 pieces

  15. Q1841675TF3 Bolt, 4 pieces

New M3000 models, reinforced (8+7) frame, equipped with Weichai WP10 series engines – corresponding engine mounts mainly include:

  1. DZ96259590114 Engine right front vibration damper

  2. Q1811655TF3 Bolt, 4 pieces

  3. DZ95259590086 Engine right front bracket

  4. Q18416100TF3 Bolt, 4 pieces

  5. DZ95259590085 Engine left front bracket

  6. DZ96259590113 Engine left front vibration damper

  7. Q1811450TF3 Bolt, 10 pieces

  8. DZ95259590068 Engine right rear mounting vibration damper

  9. DZ95259590084 Engine right rear support bracket

  10. DZ95259590083 Engine left rear support bracket

  11. DZ95259590067 Engine left rear mounting vibration damper

  12. Q1811445TF3 Bolt, 8 pieces

  13. SXQ1842050TF3 Bolt, 8 pieces

  14. DZ93259590007 Anti-loosening bolt, 2 pieces

  15. Q1841675TF3 Bolt, 4 pieces

New M3000 models, lightweight (8+4) frame, equipped with Weichai WP10 series engines – corresponding engine mounts mainly include:

  1. DZ96259590114 Engine right front vibration damper

  2. Q1811655TF3 Bolt, 4 pieces

  3. DZ95259590086 Engine right front bracket

  4. Q18416100TF3 Bolt, 4 pieces

  5. DZ95259590085 Engine left front bracket

  6. DZ96259590113 Engine left front vibration damper

  7. Q1811450TF3 Bolt, 10 pieces

  8. DZ95259590068 Engine right rear mounting vibration damper

  9. DZ95259590084 Engine right rear support bracket

  10. DZ95259590083 Engine left rear support bracket

  11. DZ95259590067 Engine left rear mounting vibration damper

  12. Q1811445TF3 Bolt, 8 pieces

  13. SXQ1842050TF3 Bolt, 8 pieces

  14. DZ93259590007 Anti-loosening bolt, 2 pieces

  15. Q1841675TF3 Bolt, 4 pieces

New M3000 models, (8+7) frame, equipped with Weichai WP9/10H series engines – corresponding engine mounts mainly include:

  1. DZ96259592018 Engine right front vibration damper

  2. Q1811655TF3 Bolt, 4 pieces

  3. DZ96259592102 Engine right front bracket

  4. Q18416100TF3 Bolt, 4 pieces

  5. DZ96259592101 Engine left front bracket

  6. DZ96259592017 Engine left front vibration damper

  7. Q1811450TF3 Bolt, 10 pieces

  8. DZ95259590068 Engine right rear mounting vibration damper

  9. DZ96259592008 Engine right rear support bracket

  10. DZ96259592007 Engine left rear support bracket

  11. DZ95259590067 Engine left rear mounting vibration damper

  12. Q1811445TF3 Bolt, 8 pieces

  13. SXQ1842050TF3 Bolt, 8 pieces

  14. DZ93259590007 Anti-loosening bolt, 2 pieces

  15. Q1841675TF3 Bolt, 4 pieces

New X3000 models, (8+7) frame, equipped with Weichai WP9/10H series engines – corresponding engine mounts mainly include:

  1. DZ95259590088 Engine right front vibration damper

  2. Q1811655TF3 Bolt, 4 pieces

  3. DZ97259592006 Engine right front bracket

  4. Q18416100TF3 Bolt, 4 pieces

  5. DZ97259592005 Engine left front bracket

  6. DZ95259590087 Engine left front vibration damper

  7. Q1811450TF3 Bolt, 10 pieces

  8. DZ95259590068 Engine right rear mounting vibration damper

  9. DZ96259592008 Engine right rear support bracket

  10. DZ96259592007 Engine left rear support bracket

  11. DZ95259590067 Engine left rear mounting vibration damper

  12. Q1811445TF3 Bolt, 8 pieces

  13. SXQ1842050TF3 Bolt, 8 pieces

  14. DZ93259590007 Anti-loosening bolt, 2 pieces

  15. Q1841675TF3 Bolt, 4 pieces

New M3000 models, variable-section (950-880) frame, equipped with Weichai WP9/10H series engines – corresponding engine mounts mainly include:

  1. DZ95259590088 Engine right front vibration damper

  2. Q1811655TF3 Bolt, 4 pieces

  3. DZ97259592006 Engine right front bracket

  4. Q18416100TF3 Bolt, 4 pieces

  5. DZ97259592005 Engine left front bracket

  6. DZ95259590087 Engine left front vibration damper

  7. Q1811450TF3 Bolt, 10 pieces

  8. DZ95259590068 Engine right rear mounting vibration damper

  9. DZ96259592008 Engine right rear support bracket

  10. DZ96259592007 Engine left rear support bracket

  11. DZ95259590067 Engine left rear mounting vibration damper

  12. Q1811445TF3 Bolt, 8 pieces

  13. SXQ1842050TF3 Bolt, 8 pieces

  14. DZ93259590007 Anti-loosening bolt, 2 pieces

  15. Q1841675TF3 Bolt, 4 pieces

Note: The bolts used in the powertrain mounting structures are all automotive standard parts. For bolts of specification M14, the corresponding nut part number is 06.11251.2005. For the anti-loosening bolts, the corresponding washer and nut part numbers are DZ93259590006 / DZ93259590005. The remaining bolts have no nuts. In daily practice
